Bryant/Carrier 88NA2506MB01 | Our#: 198919

Bryant / Carrier 88NA2506MB01 Replacement Filter

Bryant/Carrier 88NA2506MB01 | Our#: 198919

  •  Free Shipping & Free Returns
  •  100% Compatibility Guarantee
  •  Free Shipping & Free Returns
  •  100% Compatibility Guarantee
Frequently Purchased Together

Product Details

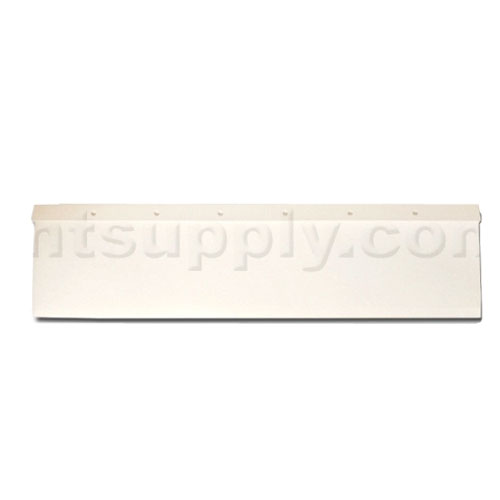

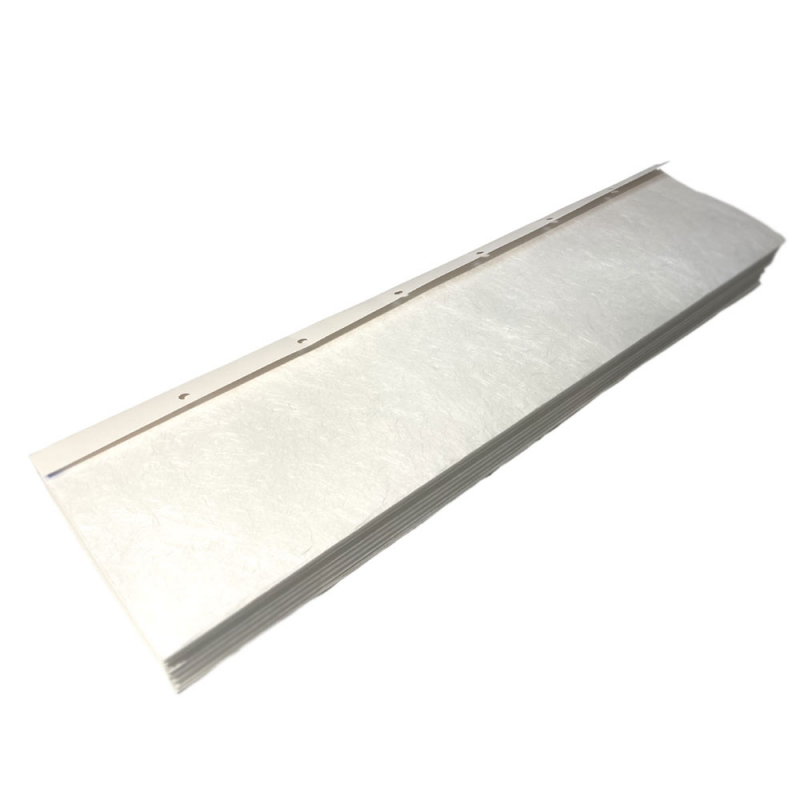

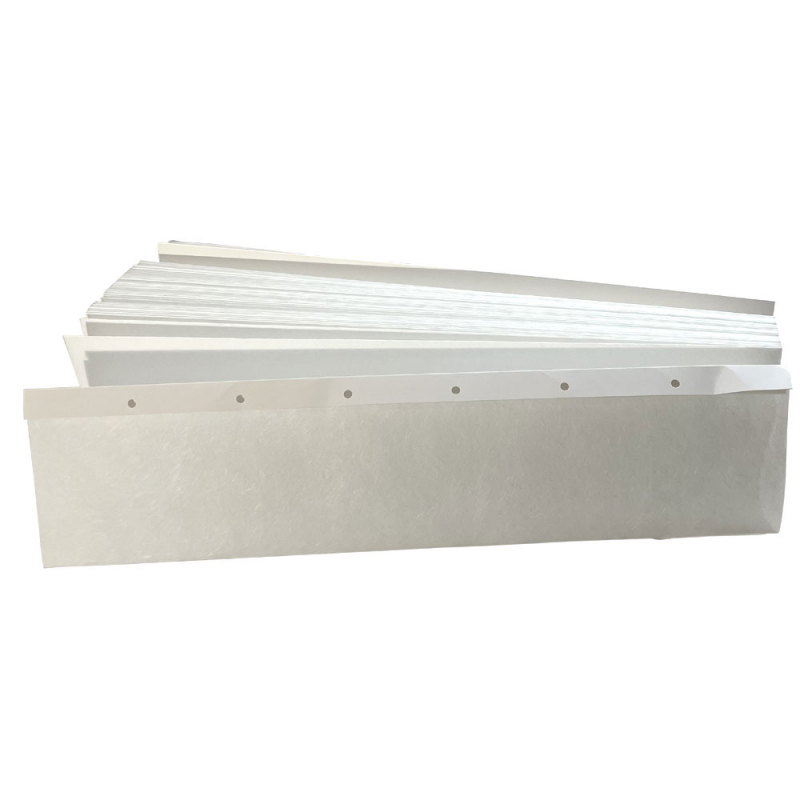

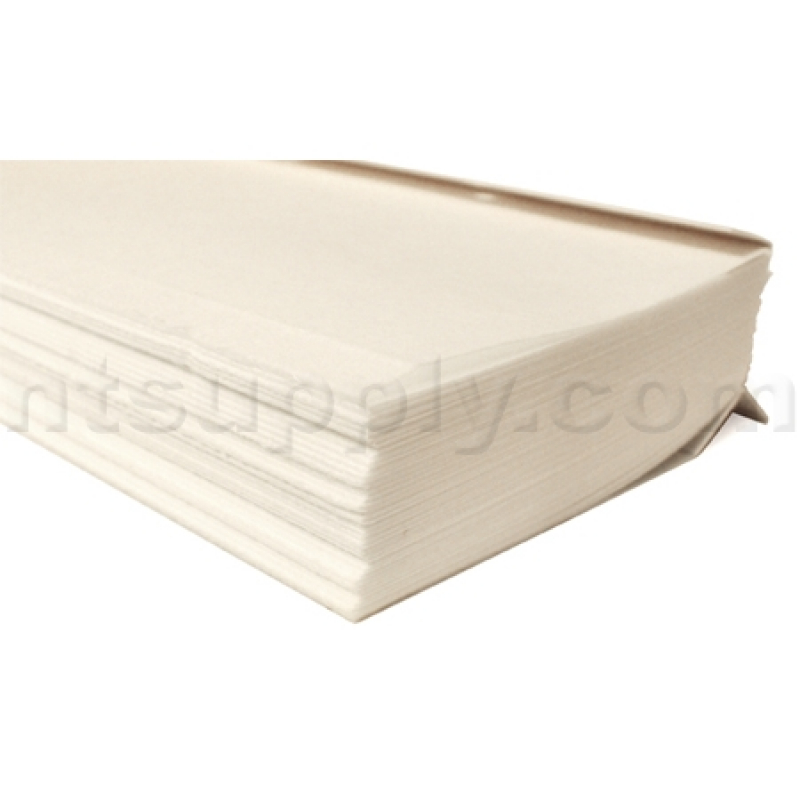

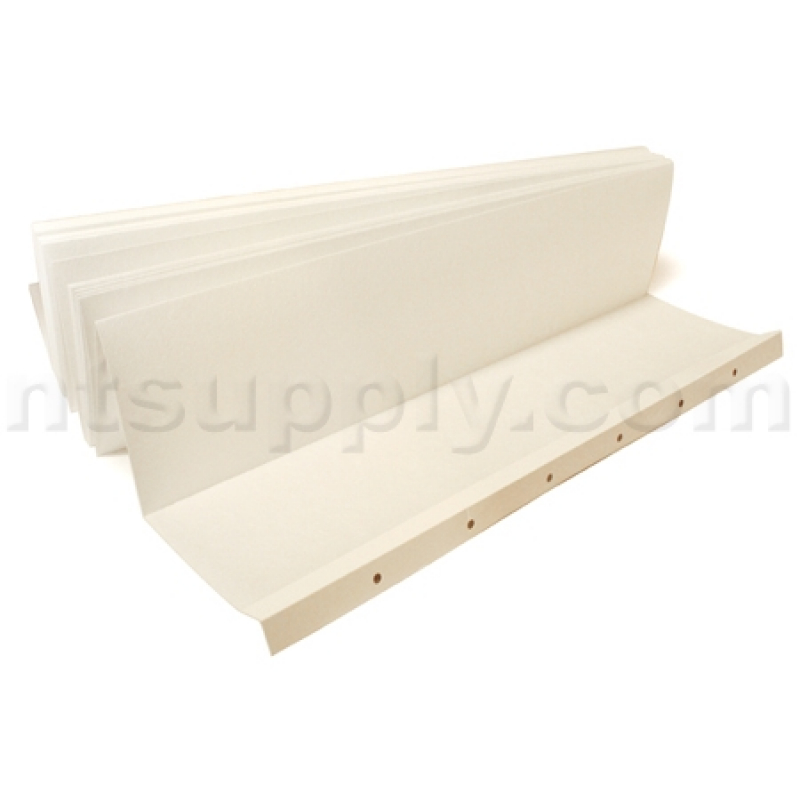

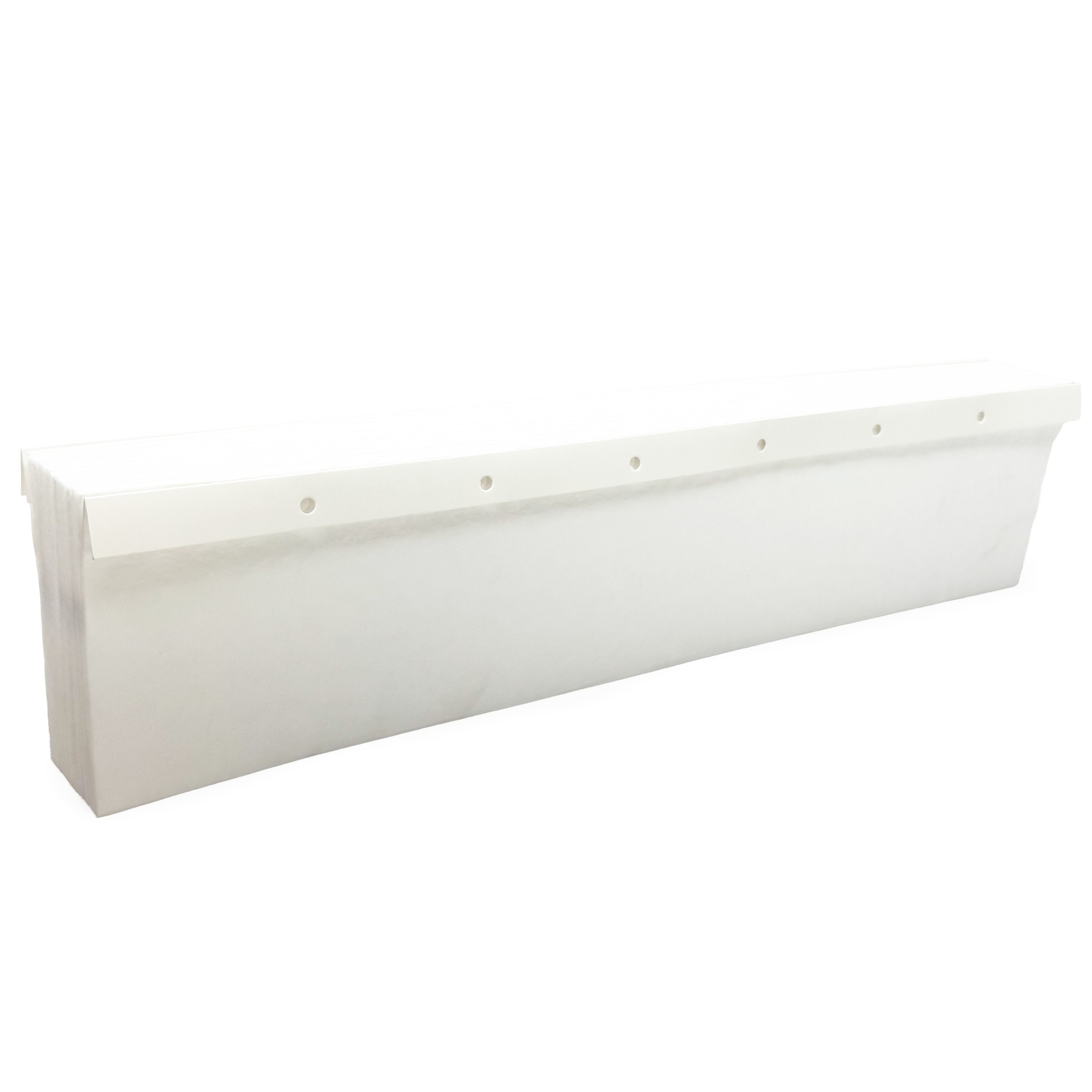

This is the high efficiency filtering media, which is the heart of your air cleaner. To maintain optimum efficiency, the filter should be inspected quarterly and replaced at least every 12 months. The filter may require more frequent replacement if the filter appears dirty to the point of blocking air flow through the heating/cooling equipment. When replacing the filter be sure to keep the pleat spacers as they can be used for the life of the mechanical air cleaner. This high quality filter is manufactured by Carrier/Bryant.

  • Bryant/Carrier Expandable Media Type for 31MF 020/120, 902B-020 Mechanical Air Cleaner Replacement Air Filter
  • Part#: 88NA2506MB01 AKA 12758, P901-2109
  • MERV 10
  • Collapsed Dimensions: 25" W x 6-1/4" D

  • Replaces These Filters:

    Bryant/Carrier:
    12758
    88NA2506MB01
    P901-2109

    Fits In These Systems:

    Bryant:
    902B
    Carrier:
    31MF020
    31MF120
    Coleman:
    S1-MAC11202506
    Day & Night:
    902B
    General:
    AC-1
    AC-22
    AC-3
    Source1:
    S1-MAC11202506


    How to change your furnace/air-conditioner/HVAC air filter

    Estimated time: 10 minutes or less

    Steps

    1. Determine the location of your filter

      Your forced air system will be similar, whether or not it is a heating (furnace) or cooling (AC) system – or both. The furnace filter housing/slot is located right next to the heating/cooling system’s air handler or blower. Your filter(s) may also be located in a return grille on the wall or ceiling of your home.

    2. Determine the type/size of filter that you use

      Typically, the dimensions or part number of the filter will be printed on the filter frame. Use this information to order a new filter.

    3. Purchase a new air filter from DiscountFilters.com

      Visit DiscountFilters.com and purchase a new filter. Use our filter finders to verify the correct match.

    4. Remove the old filter

      Turn off the power to the heating/cooling system and remove the old filter from its housing/slot and discard.

    5. Insert the new filter

      Pay attention to any airflow direction arrows printed on the frame of the new filter. Install the filter by sliding it into the filter housing/slot with the airflow arrow pointing towards the blower. If installing the filter in a wall or ceiling grille – the airflow arrow should point towards the wall or ceiling. Turn on the power to the forced air system.

      Enjoy cleaner air!
