Lennox X8313 | Our#: 177097

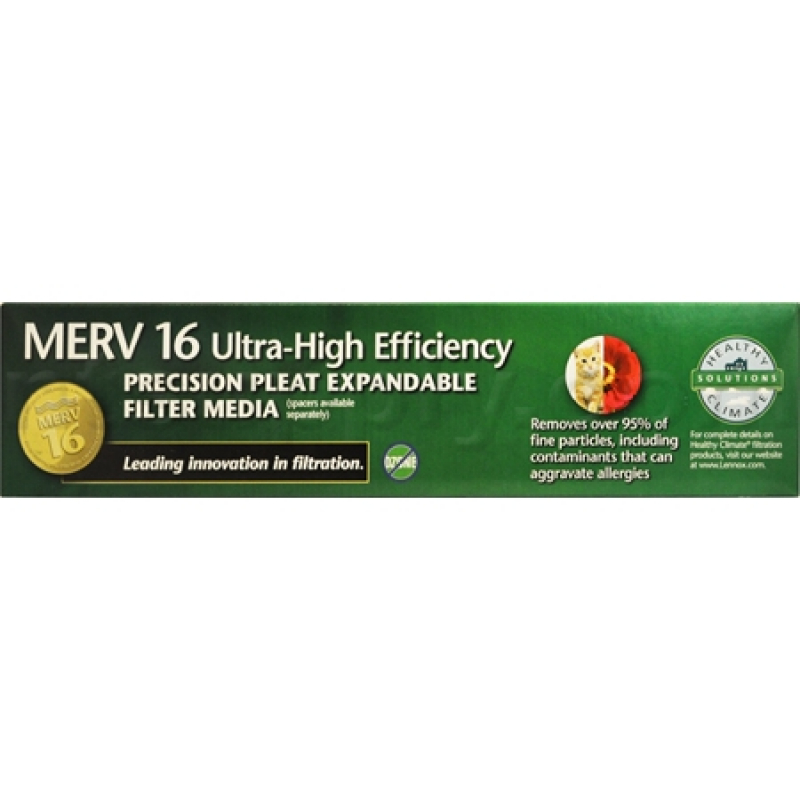

Lennox X8313 Expandable MERV 16 Replacement Filter - 20x25x5
Lennox X8313 | Our#: 177097
- Free Shipping & Free Returns
- 100% Compatibility Guarantee
The ultimate indoor air quality solution
- Most efficient filter available for residential applications
- Captures over 95% of airborne allergens down to 0.3 microns
- Long service life and low pressure drop
- Actual Dimensions: 19 ¾" x 24 ¾" x 4 7⁄16"
2 people in your area recently purchased this product!
- Free Shipping & Free Returns
- 100% Compatibility Guarantee
Frequently Purchased Together
Product Details
Factory original accordian-style filter from Lennox. This MERV 16 filter captures particles down to .3 microns. This expandable media air filter ships like a collapsed accordian and is expanded into existing frame. Cartridge can last up to one year, though product replacement life cycle depends on the individual conditions and needs of your home.
- Rated at MERV 16 and removes up to 95% of particles, down to .3 microns.
Synthetic media offers large surface area for maximum dirt holding capacities with minimum air resistance - Replaces catalog number X8313
- Fits Healthy Climate PMAC (Pleated Media Air Cleaner) cabinets
- Nominal Dimensions: 20" x 25" x 5"
- Actual Size of Assembled Frame - 19-3/4" X 24-3/4" X 4-7/16"
- Requires plastic frame - part # X8307 (not included)
- NOTE: Plastic frame gets re-used. When changing filter - replace media but do not discard plastic frame.
- Factory original, OEM product
Replaces These Filters:
Fits In These Systems:
Lennox® and Healthy Climate® are registered trademarks of Lennox International Inc.. National Trade Supply, Inc, DiscountFilters.com and AIRx are not affiliated with Lennox International Inc.
How to change your furnace/air-conditioner/HVAC air filter
Estimated time: 10 minutes or less
Steps
Determine the location of your filter
Your forced air system will be similar, whether or not it is a heating (furnace) or cooling (AC) system – or both. The furnace filter housing/slot is located right next to the heating/cooling system’s air handler or blower. Your filter(s) may also be located in a return grille on the wall or ceiling of your home.
Determine the type/size of filter that you use
Typically, the dimensions or part number of the filter will be printed on the filter frame. Use this information to order a new filter.
Purchase a new air filter from DiscountFilters.com
Visit DiscountFilters.com and purchase a new filter. Use our filter finders to verify the correct match.
Remove the old filter
Turn off the power to the heating/cooling system and remove the old filter from its housing/slot and discard.
Insert the new filter
Pay attention to any airflow direction arrows printed on the frame of the new filter. Install the filter by sliding it into the filter housing/slot with the airflow arrow pointing towards the blower. If installing the filter in a wall or ceiling grille – the airflow arrow should point towards the wall or ceiling. Turn on the power to the forced air system.
Enjoy cleaner air!
